RNG plant: Technologies, Production Process, and Maintenance

RNG is a fuel obtained from the purification of raw biogas, in turn obtained from the exploitation of sustainable raw materials: agricultural biomass (by-products, agricultural waste and animal waste), agro-industrial waste (waste from the processing of the food chain) or the organic fraction of municipal solid waste (FORSU).

Once the biogas has been upgraded to RNG, it must be refined in order to eliminate the components not suitable for its use. Following the appropriate chemical-physical treatments, biomethane becomes suitable for the introduction of natural gas into the grid or for transport in cryogenic tankers.

As it is produced from livestock waste, agro-industrial waste, organic waste and agricultural biomass, RNG is in all respects a renewable and sustainable source of energy.

• Circular economy: in addition to reducing emissions into the atmosphere, RNG is carbon neutral, that is, it fully compensates the emissions produced to generate it, returning organic matter to the soil;

• Decarbonisation: if supported at the legislative level, by 2030 RNG production plants could contribute to the supply of 10% of all gas consumed in the European Union, reducing the burden from fossil sources;

• Energy independence: this is a solution that can significantly contribute to the energy and ecological transition, with important implications in terms of independence from foreign energy supplies.

RNG is an excellent investment opportunity for many companies in the agricultural and industrial sector which, in addition to committing to increasing the sustainability of their production, have the opportunity to generate profit and increase the level of competitiveness. According to a recent report by the European Biogas Association, RNG has shown to be 30% cheaper than natural gas.

To become a conscious producer of RNG it is necessary to consider different aspects and follow a well-defined process. Production can take place through the conversion of an existing plant or through the commissioning of a new plant. In both cases there are procedures to be followed to start production and obtain incentives.

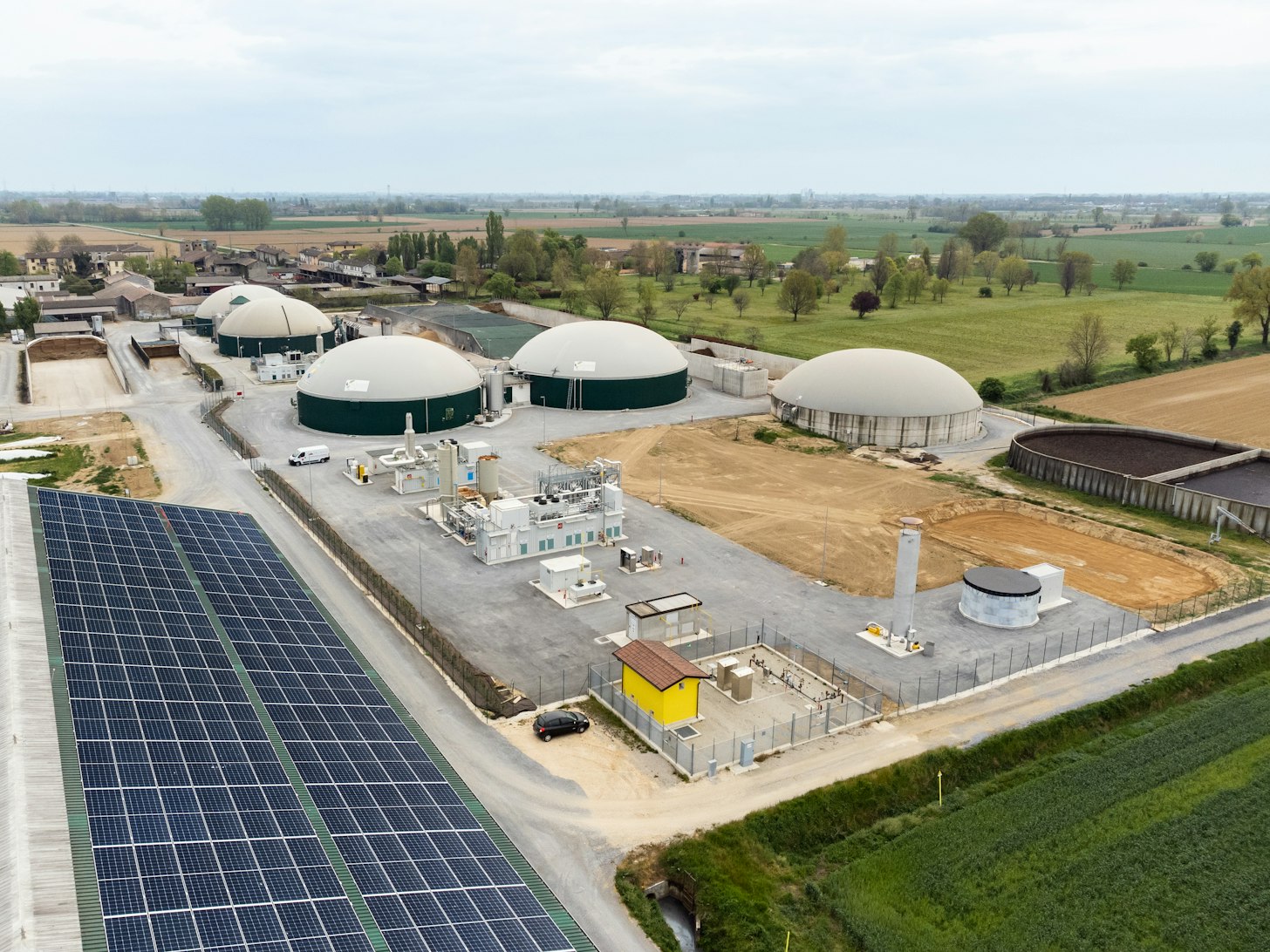

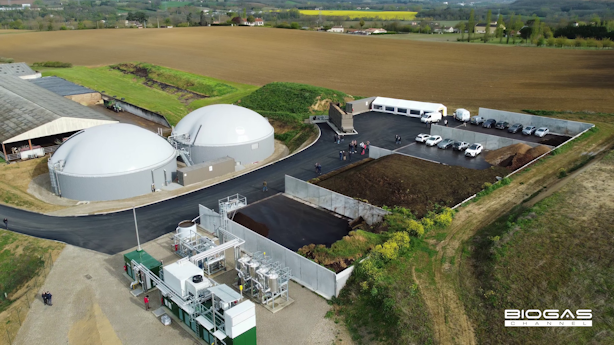

An RNG plant integrates different technologies. In addition to the anaerobic digestion system, which produces biogas from the transformation of biomass, we also find:

• A biogas purification and pretreatment system;

• An upgrading system: this is a treatment aimed at removing CO₂ from raw biogas. Among the different upgrading technologies for RNG available, the most popular and best-performing is the membrane system. In this case, the RNG produced is suitable for introduction into the distribution networks;

• A liquefaction system (where necessary): where logistical constraints do not make it possible to connect to the natural gas network, the solution is liquid RNG. Liquefied RNG is not only easily transportable but also guarantees greater efficiency when used as a fuel.

In addition to the RNG plant, it is possible to take advantage of supporting technologies, which guarantee numerous advantages, especially in terms of optimisation: efficient and sustainable self-consumption, maximisation of plant production, dialogue and compatibility and economic savings.

• RTO (waste gas treatment): the residual methane in the off-gas plays a crucial role in terms of sustainability and, for this reason, requires a specific treatment;

• CO₂ liquefaction: the CO₂ liquefaction system allows the purification and liquefaction of the carbon dioxide-rich gas from the biogas upgrading system, in order to obtain liquid CO₂ suitable for food and industrial use;

• Cogeneration solutions: aimed at covering the electrical and thermal needs of the plant, a cogeneration plant powered by biogas can produce fully renewable energy;

• Photovoltaic system: the installation of photovoltaic panels, modulated by the cogenerator, can help optimise the coverage of the system’s electrical needs.

The feasibility study is the first and most important step in the production of RNG, as it is necessary to define the correct plant sizing, energy performance and return on investment time. At a detailed level, there are three steps to be taken to assess the actual feasibility of the system.

•  The first step is to carry out a preliminary design of the plant to be followed by the economic and financial business plan. At this stage, it is important to have evaluated the technologies to be installed and to have selected the relevant technology partners;

• The next step is to proceed with the submission of the request for authorisation for the conversion or construction of the plant, relying on competent technicians.

• Finally, it is necessary to start a dialogue with credit institutions to verify the financing eligibility of the initiative.

Biogas upgrading is the treatment aimed at removing CO₂ from raw biogas to obtain compressed RNG. Among the different upgrading technologies for biomethane available, the most popular and best-performing is the membrane system, characterised by a selective permeability beneficial for the CH₄ and CO₂ separation. The upgrading process is divided into three stages:

• Biogas filtration: the upgrading process begins with the purification of the biogas coming from the anaerobic digester for the removal of water, pollutants and compression. The filtered and dehumidified gas is compressed, cooled and sent to the next treatment phase;

• Purification of pollutants (H₂S, VOCs): the biogas is purified from pollutants through a bed of activated carbon. In the "Lead-Lag" version, the configuration of the carbon includes a series of valves that allow the reversal of flows, the bypassing and the sectioning of the single filter, thus guaranteeing flexibility, reliability and continuity of service;

• Upgrading: the pre-treated and purified biogas is ready for the actual upgrading process, in other words the separation of methane from carbon dioxide. The process is optimised in terms of consumption and makes it possible to obtain a biomethane with the desired characteristics for the different uses. RNG is produced at a pressure ranging from 7 to 15 bar, to minimise consumption and facilitate its introduction into distribution networks.

The upgrading process is completed by a series of preparatory options for feeding into the grid and other accessories to accompany the operation of the plant:

• Desulfurisation system and washing tower: Upstream of the biogas treatment, a desulphurisation system is available to lower the hydrogen sulphide content and a washing tower to reduce the ammonia content;

• Oxygen concentration system: in case of low concentration of oxygen in the biogas, an oxygen concentration system from ambient air makes it possible to supply the necessary quantity so that the chemical reactions of contaminant adsorption by activated carbon take place correctly;

• Regenerative thermal oxidisers (RTO): in order to eliminate even the small percentages of methane remaining in the off-gas;

• Booster compressor: A booster compressor can be supplied to reach the pressure required by the transport networks. Before being fed into the grid, the REMI cabin measures the flow rate of the RNG and analyses its quality.

The main advantages and benefits of membrane upgrading technology include:

• Simple upgrading process

• High efficiency and low consumption

• High scalability and flexibility

• Affordable plant cost

Connection to the natural gas grid is not always possible. Where logistical constraints exist, the solution is liquid RNG (bio-LNG). Liquefied RNG, in fact, is not only easily transportable but, thanks to its density, which is three times higher than that of compressed natural gas, it guarantees greater efficiency when used as a fuel.

The liquefaction of RNG is a complex process, which consists of cooling and compressing the gaseous RNG at very low temperatures. The liquefaction process is based on an integrated, low operating pressure cryogenic process, divided into 3 phases: treatment, liquefaction and storage.

• Treatment: in the first part of the process, the TSA (Temperature Swing Adsorption) purification system lowers the moisture and CO₂ contents through molecular sieve filters;

• Liquefaction: through several cooling stages, the RNG under pressure passes into the liquid state and is made available under conditions of < -142 °C and 3 moisture or at lower temperatures and pressures. The heart of the process is the cryo-cooler, relying on the Stirling Cryogenics technology, which is an alternative refrigeration machine that works by compressing and expanding helium in a closed cycle;

• Storage: the bio-LNG is conveyed into a transfer tank, where the desired pressure and temperature conditions of the final product are reached.

Whatever the type of biomethane plant, it must be protected from failures and breakdowns, thanks to a coordinated and planned series of interventions to maximise its usability. The advantages of an integrated service are evident right from the time the plant is installed: specialists will in fact facilitate the commissioning of the plant, follow and optimise the start-up phase.

In addition to on-site assistance and an emergency response activity, the integrated service monitors all the systems 24/7, 365 days a year, with the activation of the diagnostics and remote assistance service. The service can also offer training and continuous updating courses to ensure the best operation to the customer and correct management and maintenance of the plant.

The plant service and maintenance agreements are designed and customised according to the customer's needs, to meet their requirements, ensure high returns throughout the life of the plant and guarantee greater predictability of operating costs.

The future of RNG plants

The RNG sector is taking on an increasingly important role in contributing to the energy transition path and to the development of renewable energy. Biogas and RNG farms therefore are two key assets to help promote the circular economy, accompany a sustainable green transition and contribute to energy security and independence.

AB technologies for the production of RNG

Since 1981 AB has been at the side of companies that want to increase their competitiveness, saving energy and limiting emissions into the environment. The Group is characterised by competence, production capacity and a high quality service, with the aim of providing customers with the very best energy sustainability solutions.

AB is the only partner to guarantee your company all the advantages of RNG. With AB, in fact, companies can develop and implement a complete and sustainable energy system, combining biogas upgrading, RNG and CO₂ liquefaction, cogeneration and photovoltaic technologies, supported by a full range of services, extending from feasibility studies to plant maintenance.
